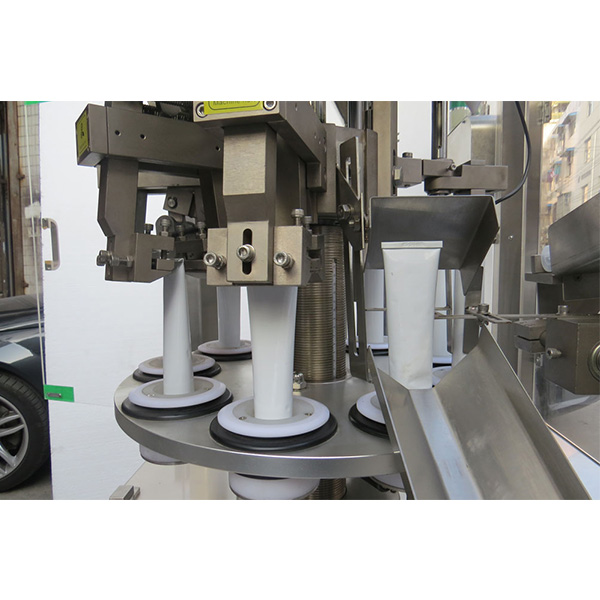

Automatisk ultralyd medicinsk og farmaceutisk rørpåfyldningsmaskine

Danrel Ultrasonic Tube Filling Sealing Machine

The process of tube sealing machine eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic sealing with the proper time setting and pressure is the fastest most reliable method for a variety of tube material sealing.

* Eliminate use of consumable material
* Produce airtight and watertight seams
* Increase production time

Automatisk ultralyd medicinsk og farmaceutisk rørpåfyldningsmaskine

Hovedtræk

1. Automatic rotary table with 10 tube holders, servo motor control

2. Adopt digital ultrasonic circuit, stable output and performance

3. Machine body of stainless steel, meet with GMP requirement

4. PLC/HMI control, simple operation and parameters setting

5. Machine with mark searching function, more precise sealing

6. Main parts adopt imported components, Japan and Taiwan

7. Suitable for plastic tubes, composite tubes, PE tubes.

8. Compared with traditional type heat sealing method, the ultrasonic tube sealing has the following

Automatisk ultralyd medicinsk og farmaceutisk rørpåfyldningsmaskine

Fordele:

* Fast Sealing, save time

* Sealing is nice looking, no plastic melting overflow

* Lower power consumption, energy saving

Functions:

1. Tube Filling
2. Mark Searching
3. Ultrasonic Sealing
4. Cutting (trimming)
5. Batch No Coding
6. PLC/HMI control, English/French/Espanol interface as request
7. 10 tube stations, 20-25 tubes/min
8. Stainless steel body, Meet with GMP requirement
9. Meet with CE requirement.

Ultrasonic Power2000W
Frequency20 KHz
StrømforsyningAC 110/220V, 50/60Hz
Delay Time0.01-2.99 S
WeldTime0.01-2.99 S
HoldTime0.01-2.99 S
Driven ModePneumatisk
Stroke75 MM
Arbejdspres0.5-0.7 MPa
Tube Diameter Range10-50 MM
Tube Height Range50-250 MM
PåfyldningsområdeA: 5-60 ml B: 10-120 ml C: 25-250 ml D: 50-500 ml
Working Station Number10
Hopper Volume30 L
Kapacitet20-35 tubes/min
PakningsdimensionL*W*H 1310*1050*1760 mm
Bruttovægt440 KGS

It's applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing. Extensional organization of the machine is made of aluminium alloy and stainless steel.

Påfyldningsmaskine

Multiple purpose filling machine can fill cream, gel, liquid, ointment, etc. Every part can be removed for easy cleaning.

Påfyldningsdyse

Anti-drip filling nozzle for liquid, cream, gel, ointment, etc

Plc Touch Screen

Berøringsfølsom skærm til hurtig indstilling.

Mark Search/Orientation

Using high sensitivity Japan-Imported Panasonic infrared positioning system, plastic tube will be turning to right side according to the mark on the tube

Ultrasonic Horn

Chrome-plating ultrasonic horn, more durable. Sealing and printing at the same time.

Vores service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
